The Architecture of Web Browsers

October 28, 2021

Hey Everyone,

Today we’ll be talking about

  • How Web Browsers Work

    • The Architecture and how the different components work together

    • How the Rendering Engine works

  • Plus, a couple awesome tech snippets on

    • Extreme HTTP Performance Tuning - Marc Richards managed to squeeze out 1.2 million requests/second from a 4 vCPU AWS EC2 instance. Here’s how he did it.

    • 50 Design Tips To Improve User Interfaces - A great PDF with 50 actionable design tips on how to develop better looking UIs

    • An Interactive Guide to the Discrete Fourier Transform - A great introduction to the Discrete Fourier Transform.

We have a solution to our last coding interview question on arrays, plus a new question from Facebook.

Quastor Daily is a free Software Engineering newsletter sends out FAANG Interview questions (with detailed solutions), Technical Deep Dives and summaries of Engineering Blog Posts.

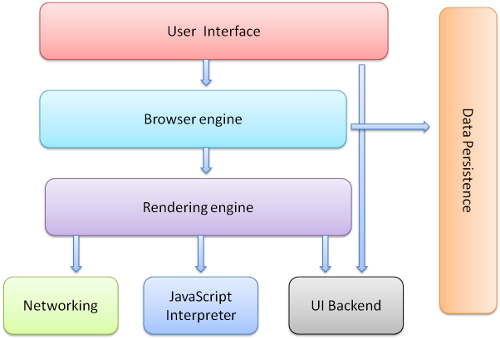

The following diagram illustrates the parts of a web browser and how they interact with each other.

User Interface

This is the user interface for the browser. It includes the Address Bar, back button, Bookmarking options, Refresh button, etc.

The browser’s user interface is not specified in any formal specification, but comes from practices shaped over decades of experience (and browsers copying each other).

As a result, all browsers have UIs that are extremely similar to each other.

The Browser Engine

The browser engine marshals actions between the browser’s user interface and the browser’s rendering engine.

When you type in a new website and press the enter key, the browser UI will tell the browser engine, which will then communicate with the rendering engine.

The Rendering Engine

The rendering engine is responsible for displaying the requested content.

The rendering engine will start by getting the contents of the requested document from the networking layer.

It takes in the HTML code and parses it to create the DOM (Document Object Model) tree.

The rendering engine will then parse the CSS to build the CSSOM (CSS Object Model). It’s like the DOM, but for the CSS rather than the HTML.

While the CSS is being parsed and the CSSOM is being created, the browser is downloading other assets through the Network Layer like JavaScript files.

The rendering engine communicates with the JavaScript engine to execute the JavaScript code and manipulate the DOM and CSSOM.

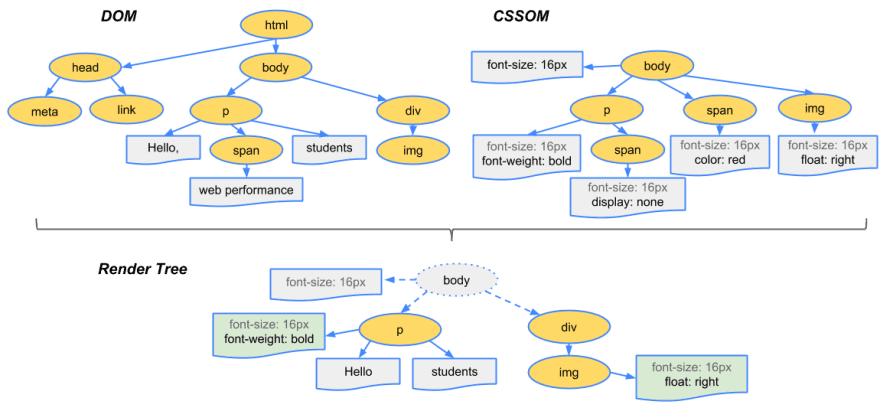

The rendering engine then takes the DOM and the CSSOM and combines them to create the Render tree.

The rendering engine then uses the UI backend for laying out the website on the screen and finally painting the pixels to the screen.

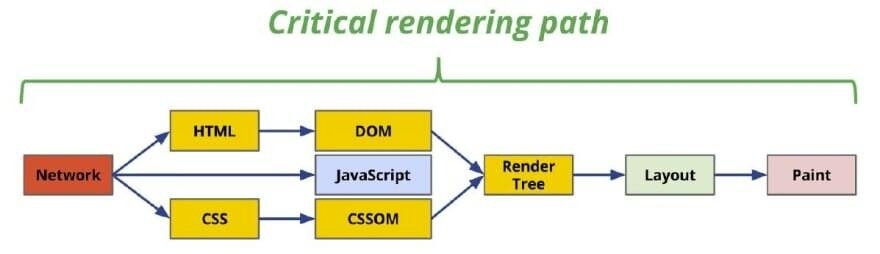

The entire process that the rendering engine goes through is called the Critical Rendering Path.

Examples of rendering engine include

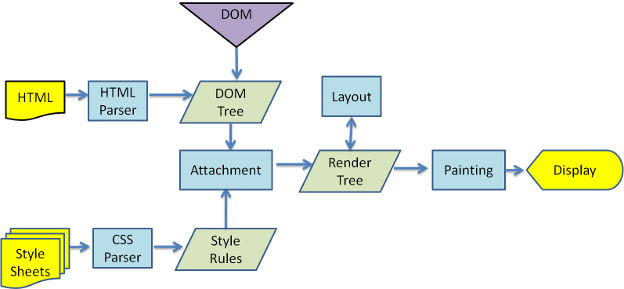

Here’s a more detailed look at the flow for WebKit

Networking Layer

The Networking Layer is responsible for making network calls to fetch resources.

It imposes the right connection limits, formats requests, deals with proxies, caching, and much more.

You can read more about the Networking Layer here.

JavaScript Engine

The JavaScript Engine is used to parse and execute JavaScript code on the DOM or CSSOM. The JavaScript code is provided by the web server, or it can be provided by the web browser (browser extensions or features of the browser like automatic ad-blocking).

Early browsers used JavaScript interpreters, but modern JavaScript engines use Just-In-Time compilation for improved performance.

Examples of JavaScript Engine include

UI Backend

This layer is responsible for drawing the basic widgets like select or input boxes and windows. Underneath it uses operating system UI methods.

The rendering engine uses the UI backend layer during the layout and painting stages to display the web page on the browser.

Data Storage

The browser needs to save data locally (cookies, cache, etc.) so the Data Storage component handles this part.

Modern browsers also support storage mechanisms like localStorage, IndexedDB, and FileSystem. This is a great article on all the options for browser-side storage.

We’ve just covered the surface level here, if you’d like to dig deeper on how the HTML and CSS parsers work as well as how the JavaScript Engine works, read the full blog post here.

Quastor Daily is a free Software Engineering newsletter sends out FAANG Interview questions (with detailed solutions), Technical Deep Dives and summaries of Engineering Blog Posts.

Tech Snippets

  • An Interactive Guide to the Discrete Fourier Transform - The Discrete Fourier Transform is used widely in algorithms. Data compression, cryptography, machine learning, etc. all depend on DFTs.This is a great article that provides intuitive visualizations and a great explanation on how the Discrete Fourier Transform works.

  • 50 Design Tips to Improve User Interfaces - If you’re like me, your UIs look like they were designed by a 6 year old. This is a great PDF with 50 design tips on how to develop better looking UIs

  • Extreme HTTP Performance Tuning - Marc Richards managed to squeeze out 1.2 million JSON API requests per second from an 4 vCPU AWS EC2 instance.He breaks down how he was able to do it in this detailed blog post.

Interview Question

You are given an integer n.

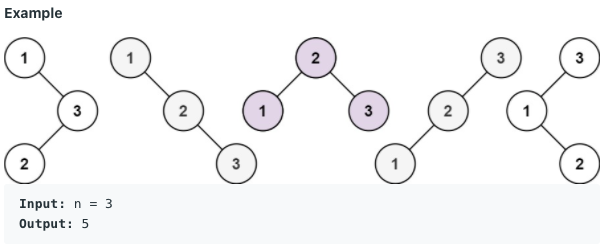

Return the number of structurally unique binary search trees that have n nodes of unique values from 1 to n.
